V. DIPESH KUMAR & CO. OFFERS RANGE

CHAMPION JOINTING SHEETS AND GASKETS

Champion Jointing Sheets And Gaskets

1. Compressed Asbestos Fibre (CAF) Jointiing Sheets in both metallic and Non-metallic varieties of all     grades.
2. Compressed Non-Asbestos (Asbestos Free) Fibre Jointing Sheets of all grades.
3. Spiral Wound-Gaskets filled with CAF/Flexible pure Graphite / PTFE

CHAMPION Style 20 STEAM


CHAMPION Style 20 STEAM
Description: Compressed Asbestos Fibre Jointing is a consistently uniformand resilient product. A price worthy quality of dependable performance, plus adaptability to many sealing requirements makes this 'STEAM' JOINTING the choice sheet packing of Plant Engineers and Maintenance men. CHAMPION STYLE 20 Jointings are developed for general purpose applications and this quality is applicable to a wide range of duties with less severe working conditions of temperature and pressure.

IDENTITY COLOUR  RED OR GRAPHITED
TECHNICAL DATA
Recommended Maximum Temperature 3800C
Recommended Maximum Pressure 35 Kg/sq.cm.
Specification Compliance
(IS 2712-1998 Grade W/3),
(IS 2712-1971 Grade C.)

..................................................................................................................................................

CHAMPION Style 20 METALLIC
Description: A Compressed Asbestos Fibre Jointing with wire gauze insertion supplied with Graphite Finish, Used for general purpose application where conditions of temperature and pressure are not too serve.

IDENTITY COLOUR
GRAPHITED BLACK
TECHNICAL DATA
Recommended Maximum Temperature
4150C
Recommended Maximum Pressure
40 Kg/sq.cm.
CHAMPION Style 20 METALLIC


...................................................................................................................................................

CHAMPION Style 54 SUPER
Description: Manufactured from excellent quality of Chrysotile Asbestos Fibre and raw materials, the blend being intimately mixed with heat resisting rubber compounds under special process, to ensure maximum stability against high pressure and temperatures. Though primarily a super heated steam Jointing it is also recommended against saturated Steam, Oxygen, Petroleum distillates, oils and fats, fuels, internal combustion engines, hydrocarbons, alcohols, solvents, lyes, etc. It is popularly used in MARINE ENGINES,electricity generating sets etc.

IDENTITY COLOUR YELLOW/GREY OR GRAPHITED
TECHNICAL DATA
Recommended Maximum Temperature 5500C
Recommended Maximum Pressure 150 Kg/sq.cm.
Specification Compliance
(Indian IS 2712-1998 Grade W/1),
(IS 2712-1971 Grade A/S),
(DGS & D G/MISC/81-C item 12 (a)
Special Quality)
(British BS 2815-1973 Grade A)

CHAMPION Style 54 SUPER

........................................................................................................................................................

CHAMPION Style 39 HIGH PRESSURE
Description: Manufactured from selected quality of Asbestos Fibre and vulcanized with special rubber compound to meet with the exacting requirements of modern industry. Used for applications against dry and wet steam, water, gases, alkalies, oil at normal temperatures, chemicals,fuels etc and general engineering. CHAMPION :Style 39 can also be provided with wire gauze insertion in graphited finish.

IDENTITY COLOUR BROWN/GREY OR GRAPHITED
TECHNICAL DATA
Recommended Maximum Temperature 4400C
Recommended Maximum Pressure 80 Kg/sq.cm.
Specification Compliance
(Indian IS 2712-1998 Grade 0/2),
(IS 2712-1979 Grade W/2),
(IS 2712-1971 Grade B/S),
(British BS 2815-1973 Grade B)

CHAMPION Style 39 HIGH PRESSURE

........................................................................................................................................................

CHAMPION Style 59 OIL
Description: A high grade Asbestos Fibre Jointing bonded with a sophisticated compound, this specialized jointing withstands the most exacting demands of oil and Petrochemicals plants, solvents refrigerator, oil etc. Used in pipe lines and apparatus of the petrochemical fields, Petroleum distillates, oil and petroleum refining industries.It is also recommended in industrial processes with high contents of aromatic substances, sulphurous compounds, chloric hydrocarbons, phenols, refrigerants, etc. Use of CHAMPION oil jointing sheet assures safety and economy even on critical working conditions.The jointing gives satisfactory services against steam also.
IDENTITY COLOUR DARK GREY
TECHNICAL DATA
Recommended Maximum Temperature 5500C
Recommended Maximum Pressure 150 Kg/sq.cm.
Specification Compliance
(Indian IS 2712-1998 Grade 0/1),
(IS 2712-1971 Grade A/O)
(DEFENCE TS RED/71/59),
(British BS 1832-1972)

........................................................................................................................................................

CHAMPION Style 60 ACID
Description:This is a specialised Asbestos Fibre Jointing Sheet which is intimately bonded with Acid resisting compound, to withstand the corrosive action of acids and chemicals, Recommended for use against hot concentrated organic,Inorganic and mineral acids including hydrochloric, sulphuric (oleum) and nitric acids, under service conditions of temperature and pressures commonly encountered in Chemical industries.
IDENTITY COLOUR CREAM/LIGHT GREY
TECHNICAL DATA
Recommended Maximum Temperature 2100C
Recommended Maximum Pressure 150 Kg/sq.cm.
Specification Compliance
(Indian IS 2712-1998 Grade A/1),




CHAMPION Style 60 ACID



........................................................................................................................................................
MAJOR TECHNICAL FEATURES
STYLE
TENSILE
STRENGTH N/mm2
STRESS
RESISTANCE N/mm2

Compress
-ibility
%

Recovery
%

Ignition
Loss %
Recommended
Maximum Temperature
Recommended
Maximum
Pressure
20
9.5
20
7.5-12
> 42.5
< 20
3800C
35 Kg/sq.cm
20 M
12.0
20
7-12
> 45
< 20
4150C
40 Kg/sq.cm
39
18.0
23
7-12
> 45
< 22
4400C
80 Kg/sq.cm
54 Super
28.0
28
6.5-11.5
> 50
< 25
5500C
150 Kg/sq.cm
54 Super M
30.0
30
7-10.5
> 50
< 22
6000C
160 Kg/sq.cm
59 Oil
28.0
30
7-10.5
> 50
< 25
5500C
150 Kg/sq.cm
60 Acid
27.0
25
7-12
> 45
> 25
2100C
150 Kg/sq.cm


Asbestos & Non-Asbestos Packings
Asbestos Textile & Ceramic Products for Heat Insulation
Pure / Filled PTFE / PTFE Products
Graphite & Carbon Products
Plastic Products & Engineering Plastic
VD Seal Non Asbestos & Fluid Seal products
VD Seal PTFE Expanded Tape / Rope


STYLE

PRODUCT PROFILE

* SERVICE CONDITIONS

 TYPICAL PHYSICAL
 PROPERTIES

FLUID RESISTANCE







A cost effective product manufactured from ecofriendly natural cellulosic fibres bonded
with suitable mix of elastomers.
Colour: Red & Green Also available with wire gauze reinforcement and antistick coating.

General purpose gasketing material suitable for use with Oils, Solvents, Gases, Water, L.P. Steam and most dilute acids and alkalies (Low service conditions) Max. Operating Pressure: 25 bars Max. Short Term Service Temperature: 400°CMax. Continuous Service Temperature: 250°C Max. Operating Temperature for Steam : 180°C

Density

  1.75 g/cm3
Tensile
Strength

 ASTM
 F 152

 8.5 MPa

Compre
ssibility
ASTM
 F 36
8-13%
Residual Stress BS
7531
22 MPa
Gas Permeability BS
7531
<0.5
cc/Min
Recovery ASTM
F 36
> 45%
Water Absorbtion BS
7531
< 5%
Ignition Loss   < 40%


ASTM Oil
No.3

Fuel B

Thick
ness
Incre
ase%
Mass
Incre
ase %
Thick
ness
Incre
ase%
Mass
Incre
ase %
< 10 < 10 < 10 < 10





A compressed synthetic Aramid fibre jointing sheet bonded with elastomers to create a matrix of stability Colour: Green Also available with wire gauze reinforcement and antistick coating.

Suitable for light industrial applications. Media: Water, Gases, Medium Pressure Steam, Dilute Acids/Alkalies (Medium Service Conditions)

Max. Operating Pressure : 50 bars Max. Short Term Service Temperature: 400°C Max. Continuous Service Temperature : 250°C

Max. Operating Temperature for Steam: 200°C

Density

1.9
g/cm3

Tensile
Strength

ASTM
F 152

 11.5
MPa

Compre
ssibility

ASTM
F 36

8-11 %

Residual Stress

BS
7531

22
MPa

Gas Premeability

BS 7531

<0.5
cc/Min

Recovery

ASTM
F 36

> 45 %

Water
Absorbtion

BS
7531

< 5%

Ignition Loss   < 30%

ASTM Oil
No.3

Fuel B

Thick
ness
Incre
ase%

Mass
Incre
ase %

Thick
ness
Incre
ase%

Mass
Incre
ase %

< 10

< 10

< 10

< 10



A high quality jointing sheet based on synthetic Aramid fibres bonded with NBR elastomer. Colour: Orange Also available with wire gauze reinforcement and antistick coating.
Suitable for use in applications involving hydrocarbons such as oils and solvents, steam, gases, glycols and aqueous solutions.
(Medium Service Conditions)
Max. Operating Pressure: 80 bars Max. Short Term Service Temperature: 400°C
Max. Continuous Service Temperature : 250°C
Max. Operating Temperature for Steam: 200°C
 Density

1.85 g/cm3

 Tensile  Strength

ASTM
F 152

14
MPa

Compress
ibility

ASTM
F 36

8-12%

Residual
Stress

BS
7531

22 MPa

Gas Permeability

BS 7531

< 0.5
cc/Min

Recovery

ASTM
F 36

> 40%

Water Absorbtion BS 7531 < 5 %

Ignition Loss

  < 35%

ASTM Oil
No.3

Fuel B

< 8

< 8

< 8

< 8




A superior performance compressed jointing sheet incorporating a blend of special heat resisting Aramid fibres with a high quality nitrile elastomer binder
Colour: Yellow
Also available with wire gauze reinforcement and anti stick coating.
Suitable for use with Oils, Solvents, Gases, Steam, Dilute Acids and alkalies.
(High Service Conditions)
Max. Operating Pressure : 150 bars
Max. Short Term Service Temperature: 450°C Max. Continuous Service Temperature: 250°C Max. Operating Temperature for Steam: 290°C
Density   1.8 g/cm3
Tensile
Strength
ASTM
F 152

15 MPa

Compre
ssibility
ASTM
F 36
7-11%
Residual Stress BS 7531 25 MPa
Gas Permeability BS 7531 < 0.1 cc/Min
Recovery ASTM  F 36 > 50 %
Water
Absorbtion
BS 7531 < 5%
Ignition Loss   < 35%

ASTM Oil
No.3

Fuel B

< 8

< 8

< 8

< 8




A Premium grade jointing sheet based on special synthetic Aramid fibres bonded with nitrile elastomer
Colour: Grey
Also available with wire gauze reinforcement and antistick coating.
A universal grade suitable for many industrial sealing applications. Media: Hot oils, fuels, Hydrocarbons and refrigerants.
(High Service Conditions)
Max. Operating Pressure :
150 bars Max. Short Term Service Temperature: 450°C
Max. Continuous Service Temperature: 250°C
Max. Operating Temperature for Steam: 250°C
Density   1.7 g/cm3
Tensile
Strength
ASTM F152 15 MPa
Compre
ssibility
ASTM F36 10-14 %
Residual Stress BS 7531  25 MPa
Gas Permeability BS 7531 <0.1 cc/Min
Recovery ASTM
F 36

> 45%

Water
Absorbtion
BS 7531 < 5%
Ignition Loss   < 35%

ASTM Oil
No.3

Fuel B

< 8

< 8

< 8

< 8











A top quality acid resistant compressed synthetic Aramid fibre jointing sheet bonded with special binders.
Colour: Cream
Available with antistick coating.









Acid resistant grade. Recommended for use against hot, Concentrated Organic/inorganic/mineral acids.
Max. Operating Pressure : 150 bars
Max. Short Term Service Temperature: 250°C Max. Continuous Service Temperature: 210°C Max. Operating Temperature for Steam: 210°C
Density
1.8 g/cm3
Tensile
Strength
ASTM
F 152
15 MPa
Compre
ssibility

ASTM
F 36

8-12 %

Residual
Stress
BS
7531
25 MPa
Gas Permeability
BS 7531
< 0.1 CC/mIN
Recovery
ASTM
F 36
> 50%
Water Absorbtion
BS 7531
< 5%
Lgnition Loss
BS 7531
< 35%
Thick
ness
Increase
%
Mass
Incre
ase
%
Thick
ness
Incre
ase
%
Mass
Incre
ase
%
< 8
< 8
< 8
< 8

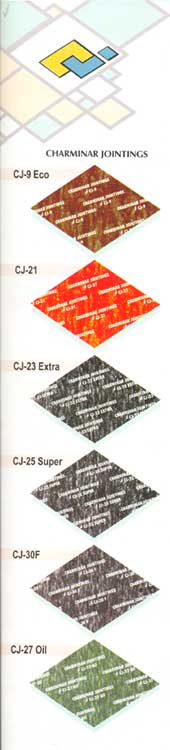

NON METALLIC GRADES

INTRODUCTION

CHARMINAR is proud to present Compressed Fibre Jointing Sheet. CHARMINAR has highly trained experts under its umbrella especially of designing the wide range of products of latest manufacturing techniques & quite familiar with the compass of compressed Fibre Jointing Materials. It is gratifying to record the CHARMINAR Jointing Sheets have been successfully accepted in the Automobiles, from the smallest Petrol Engine to the largest Diesel Engines, Compressors, Chemical Plants, Locomotives, Petro­Chemical industries, Crude Oil Refineries etc. It provides excellent sealing of Acids, Alkalies, Fuel Oils, Lubricants, Solvents, Gases, Air, Steam, Water etc. at temperature varying from -80°C to 540°C and pressure upto 200Kg/cm2.

NON METALLIC GRADES
MATERIAL DESCRIPTION

Medium quality for general purpose use Max. Internal Pressure: 20 bar Max. Operating Temperature: 250°C.

SPECIFICATION COMPLIANCE

This general purpose jointing material has been specially developed for low and medium stress conditions. Recommended for sealing steam, water, air and various alkaline chemicals.
Max. Internal Pressure: 35 bar
Max. Operating Temperature: 380°C.

ISI : 2712-1998
Grade W/3

Specially recommended for sealing steam, water, air saline solution, alkalies, ammonia, natural gas, petrol and several non-aggressive media under
medium stress conditions.
Max. Internal Pressure : 80 bar
Max. Operating Temperature: 450°C

IS12712-1998 Grade W/2 ISI : 2712-1998 Grade 0/2 DIN: 3754
IT-200
ASTM : F 104 F 112651 BS: 1832 -1991 Grade B JIS: R 3453 (1985) Type-2

A special purpose jointing material meant for use in extreme conditions. for sealing against high pressure super heated steam, water, air, saline solutions, alkalies, ammonia; propane, producer gas and mildly aggressive media under medium stress conditions.
Max. Internal Pressure: 150 bar
Max. Operating Temperature: 550°C

ISI : 2712-1998 Grade W/1 DIN: 3754 IT-300
ASTM- F 104 F 112001 M7 BS: 1832-1991 Grade A

Effective sealing of motor oil, carburetor mixtures, most transmission and hydraulic fluids, low refrigerating oils, fuels, steam, water/anti-freeze and water/anti-corrosion mixtures and alkalies. This grade offers high oil and fuel resistance. Max. Internal Pressure: 50 bar
Max. Operating Temperature: 450°C

DIN: 3754 IT-O
ASTM : F 104 F112121 JIS : R3453 (1985) Type 3

An excellent quality material suitable for sealing at very high temperature, resistant to steam, gasses, motor oils, carburetor fuel, mixtures, most transmission and hydraulic fluids, low temperature oils, steam, alkalies, water/anti-freeze & water/anti-corrosion mixtures, solvents. Highly suitable for internal combustion engines, compressors, chemical plants etc. This grade also provides effective sealing against hot oils, tar, oils and chlorinated and aromatic hydrocarbons. Max. Internal Pressure: 150 bar
Max. Operating Temperature: 550°C

ISI : 2712-1998 Grade 0/1 ISI : 2712-1998 Grade W/1
ASTM- F 104 F 112320 M7 BS: 1815-1973 Grade A BS : 1832-1972 Grade A JIS : R 3453 (1985) Type - 1
